너비 우선 탐색 (Breadth First Search, BFS)Algorithm\자료구조 2021. 8. 23. 11:24
너비 우선 탐색 (Breath First Search, BFS)는?
- 탐색시 너비를 우선으로 탐색을 수행하는 탐색 알고리즘
- 맹목적인 탐색을 하고자 할 때 사용
- 최단 경로를 찾아줌 -> 최단 길이를 보장해야 할 때 사용
- 자신에게 연결된 모든 사람에게 연락을 취하는 방식
- 특징 :
- 1부터(시작점으로부터) 가까운 노드들부터 탐색이 이루어짐
- 그래프 탐색일 경우 방문 여부 검사 필수
- 재귀적 동작 X
- FIFO (선입선출)
- 큐를 이용해서 반복적 형태로 구현하는 것이 일반적
public static void main(String[] args) { Scanner sc = new Scanner(System.in); int n = sc.nextInt(); int m = sc.nextInt(); int startNum = sc.nextInt(); boolean[] visited = new boolean[n+ 1]; LinkedList<Integer>[] adjList = new LinkedList[n + 1]; for(int i = 0; i < (n+ 1); i++ { adjList[i] = new LinkedList<Integer>(); } for(int i = 0; i < m; i++) { int v1 = sc.nextInt(); int v2 = sc.nextInt(); adjList[v1].add(v2); adjList[v2].add(v1); } for(int i = 1; i < (n+1); i++) { Collections.sort(adjList[i])); } bfs_list(v, adjList, visited); } public static void bfs_list(int v, LinkedList<Integer>[] adjList, boolean[] visited) { Queue queue = new LinkedList<Integer>(); visitied[v] = true; queue.add(v); while(queue.size() != 0) { v = queue.poll(); System.out.print(v + " "); Iterator<Integer> iter = adjList[i].listIterator(); while(iter.hasNext()){ int w = iter.next(); if(!visited[w]) { visited[w] = true; queue.add(w); } } } }
- 큐 : 방문 차례의 기록을 목적으로 사용
- 연락을 취할 정점의 순서를 기록하기 위한 것
- 마지막 연락을 받은 사람 또한 연락을 취할 대상이 없는지 꼭 확인할 것
- 배열 : 방문 정보의 기록 목적

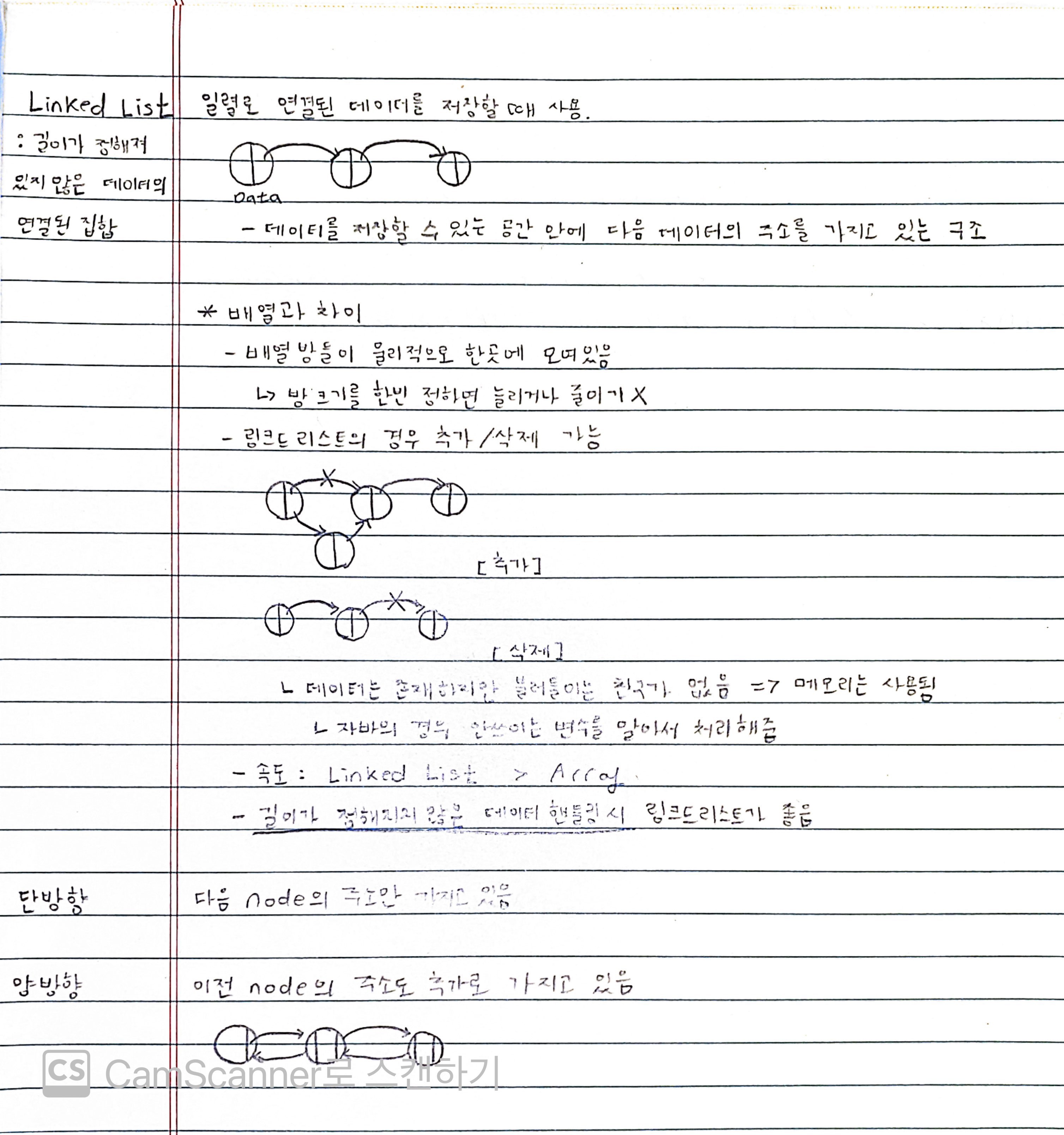

[LinkedList 이용해서 구현하면 좋음]
